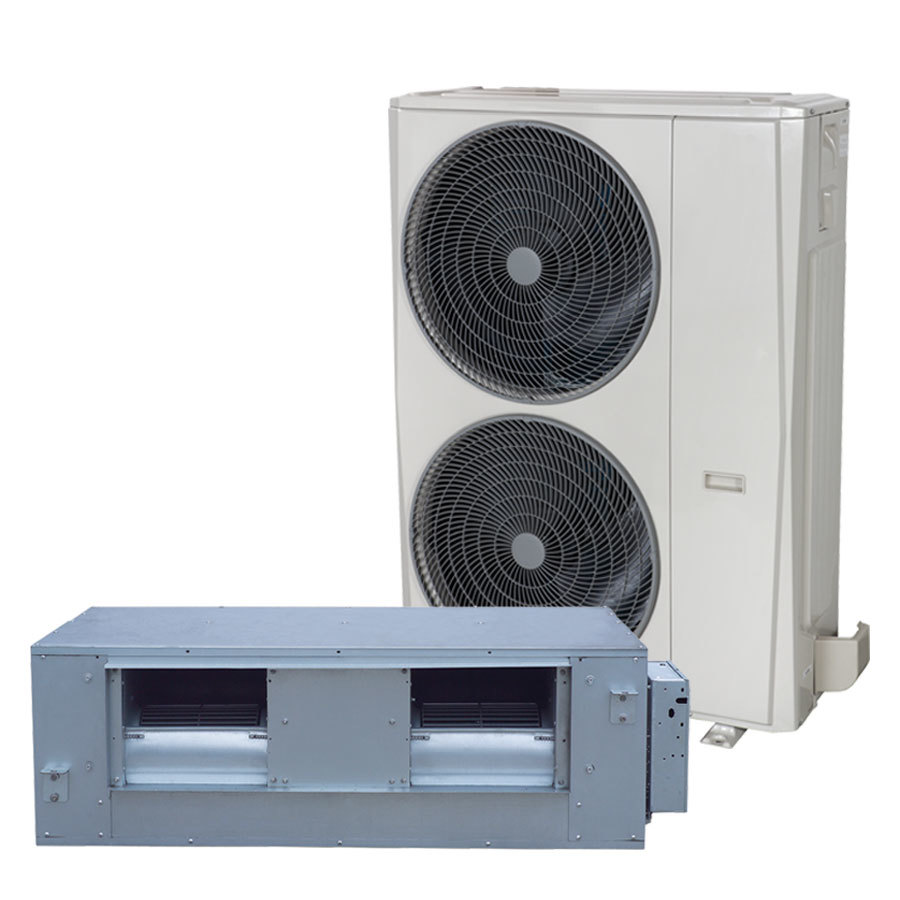

17.0kw Inverter Ducted Air Conditioner - DSI-170-DUCTED

In Stock

Calculate Shipping



Domain Air Conditioners range of ducted split system air conditioners are ideal for homes and offices of all sizes. Ducted air conditioning systems provide heating and cooling to various areas of the home or office simultaneously allowing sufficient heating and cooling to be provided at all times. Domain Appliances ducted air conditioning systems offer various operating functions including heating, cooling and dehumidification (dry) mode to ensure the desired temperature is maintained at all times. Domain Appliances ducted split system air conditioners come with digital display wall mounted control and remote control and a remote control allowing great flexibility during operation. Your installer can setup multiple zones for your ducted air conditioning system therefore increasing the application area specifically to your needs. With Domain Appliances ducted split system air conditioners, climate control is at the touch of a button.

3 Years Parts and Labour Warranty


Model DSI-170
Power Supply Ph-V-Hz 1P/220-240V/50
Cooling Capacity W 17000
Input W 5155
Rated Current A 23.7 (7.0 ~ 26.5)
Heating Capacity W 17500
Input W 5200
Rated Current A 23.7 (9.5~28.5)
Max. Input Consumption W 6000
Max Current A 30.0
Compressor Type / Brand Scroll / Toshiba
Capacity (Btu/h) 46750
Indoor Air Flow (Hi / Med / Low) m3/h 3800 / 3200 / 2950
Indoor unit Dimensions (WxDxH) mm 1400 x 858 x 440
Packaging (WxDxH) mm 1605 x 910 x 505
Net/Gross weight KG 75.0 / 83.0
Outdoor unit Dimensions (WxDxH) mm 952 x 415 x 1333
Packaging (WxDxH) mm 1095 x 495 x 1480
Net/Gross weight KG 116 / 130
Refrigerant Type/g R410A/5600
Refrigerant Piping Liquid Side / Gas Side mm 9.52 / 19
(3/8" / 3/4")
Max. Pipe Length m 65
Max. Difference Level m 30
Operation temp (Cooling / Heating) C 17 ~ 32 / 0 ~ 30
Ambient temp (Cooling / Heating) C -15 ~ 50 / -15 ~ 24
Outdoor Noise Level dB(A) (1.0m) 62
Star rating (Cooling / Heating) Stars 2.0 / 2.0
View PDF brochure for 17.0kw Inverter Ducted Air Conditioner - DSI-170-DUCTEDTechnical Specification Sheet
