7.8kw Inverter Reverse Cycle Split System

$1,478.00
In Stock



Calculate Shipping


TECHNICAL INFORMATION

Model ISR78H
Cooling Capacity W 7800
Capacity Rate Minimum W 2200
Capacity Rate Maximum W 8800
EER W/W 3.31
Heating Capacity W 8000
Capacity Rate Minimum W 2400
Capacity Rate Maximum W 9000
ACOP W/W 3.39
Power Data Power Supply Ph-V-Hz 220-240V ~50Hz
Power Supply Connection - Outdoor Unit
Voltage Range - 165 ~ 265
Running Current Cooling - 10.2 (2.6 ~ 14.9)
Running Current Heating - 10.3 (3.1 ~ 17.6)
Rated Input Cooling W 2340 (540 ~ 3100)
Rated Input Heating W 2350 (640 ~ 3650)
Maximum Current Cooling - 14.9
Maximum Current Heating - 17.6
Maximum Input Cooling W 3100
Maximum Input Heating W 3650
Fan System Air Circulation Cooling m3/h 1330
Air Circulation Heating m3/h 1430
Indoor Fan Speeds Cooling rpm 1050 / 950 / 800
Indoor Fan Speeds Heating rpm 1150 / 1050 / 850
Indoor Fan Speeds Dry rpm 800
Indoor Fan Speeds Sleep rpm 800
Indoor Fan Motor Output W 45
Outdoor Fan Speeds rpm 800 / 750 / 600
Outdoor Fan Motor Output W 85
Moisture Removal L/H 2.8
Refrigerant System Refrigerant Type - R410A
Precharge Amount g 2650
Compressor Type - Rotary
Connections Connecting Pipe Gas Inch 5/8
Connecting Pipe Liquid Inch 3/8
Maximum Pipe Length Metres 20
Maximum Height Difference Metres 5
Connecting Wiring mm x cores 2.5 x 5
Dimensions / Weights Indoor Unit (WxHxD) mm 1095 x 327 x 235
Air Circulation Heating mm 900 x 805 x 360
Indoor Fan Speeds Cooling kg 15
Indoor Fan Speeds Heating kg 64
Indoor Fan Speeds Dry mm 1158 x 388 x 308
Indoor Fan Speeds Sleep mm 1031 x 925 x 447
Indoor Fan Motor Output kg 18
Outdoor Fan Speeds kg 68
Stars Cooling stars 2.0
Heating stars 2.0
Noise Level Indoor db (A) 32 - 52
Outdoor db (A) 57
Outdoor Operating Temperatures Cooling Degrees Celcius -7 ~ 52
Heating Degrees Celcius -15 ~ 24
Indoor Operating Temperature Range Cooling Degrees Celcius 16 ~ 31
Heating Degrees Celcius 16 ~ 31

DESCRIPTION

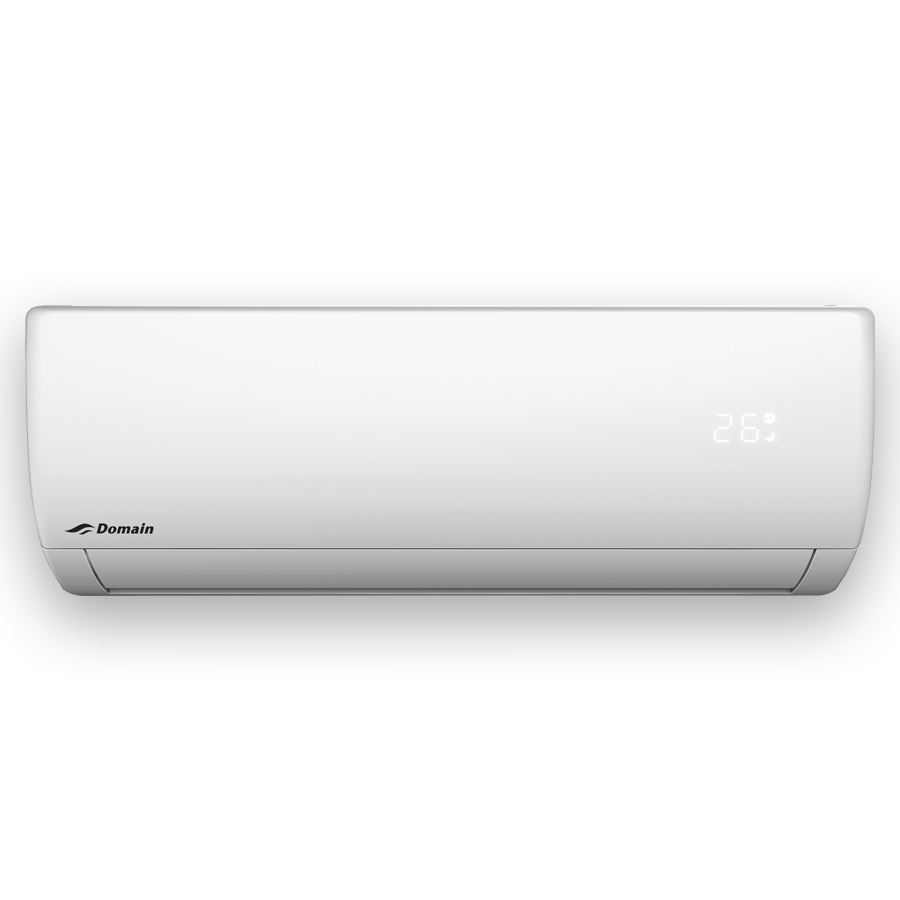

The ISR78H inverter split system air conditioner is a very powerful wall mounted air conditioning system. This premium split system air conditioner has been developed with state of the art inverter technology to increase the efficiency to the highest standards in the market today. This Domain Air inverter split system has various functions right at your fingertips and with a variable speed inverter compressor the ideal temperature can be maintained all year round. Install an ISR78H inverter split system air conditioner in your home or office and enjoy the benefits of this premium air conditioner today.




DOMAIN REVERSE CYCLE AIR CONDITIONING

Domain's Inverter reverse cycle air conditioning is perfect for can heating and cooling your home. It can be one of the most efficient ways to heat your home using electricity.


Domain's reverse cycle air conditioners absorb heat from the outside air to warm the air inside. This is a more efficient heating technique than other conventional heating appliances which have to "create" heat energy.

Domain's air conditioner absorbs the heat from the inside air and dissipates it the outside, leaving your home comfortable and cooler.




Domain's inverter split system air conditioners are more powerful whilst also more energy efficient than conventional systems. The inverter technology works by automatically varying their speed up and down in relation to fluctuations in room temperature to provide a more consistent desired temperature.

This ability to vary the speed of the compressor allows Domain's inverter systems to be highly energy efficient. These premium inverter split system air conditioners offer various operating functions including heating, cooling, fan, dehumidification(dry) mode, and multiple fan speeds ensuring your comfort all through all seasons for many years to come.



The compressor is the heart of a Domain air conditioner. Situated within the outdoor unit, the compressor pumps refrigerant to the indoor unit. This unit features a quality rotary compressor.










WARRANTY

3 Years Parts and Labour Warranty
