ISR53Q

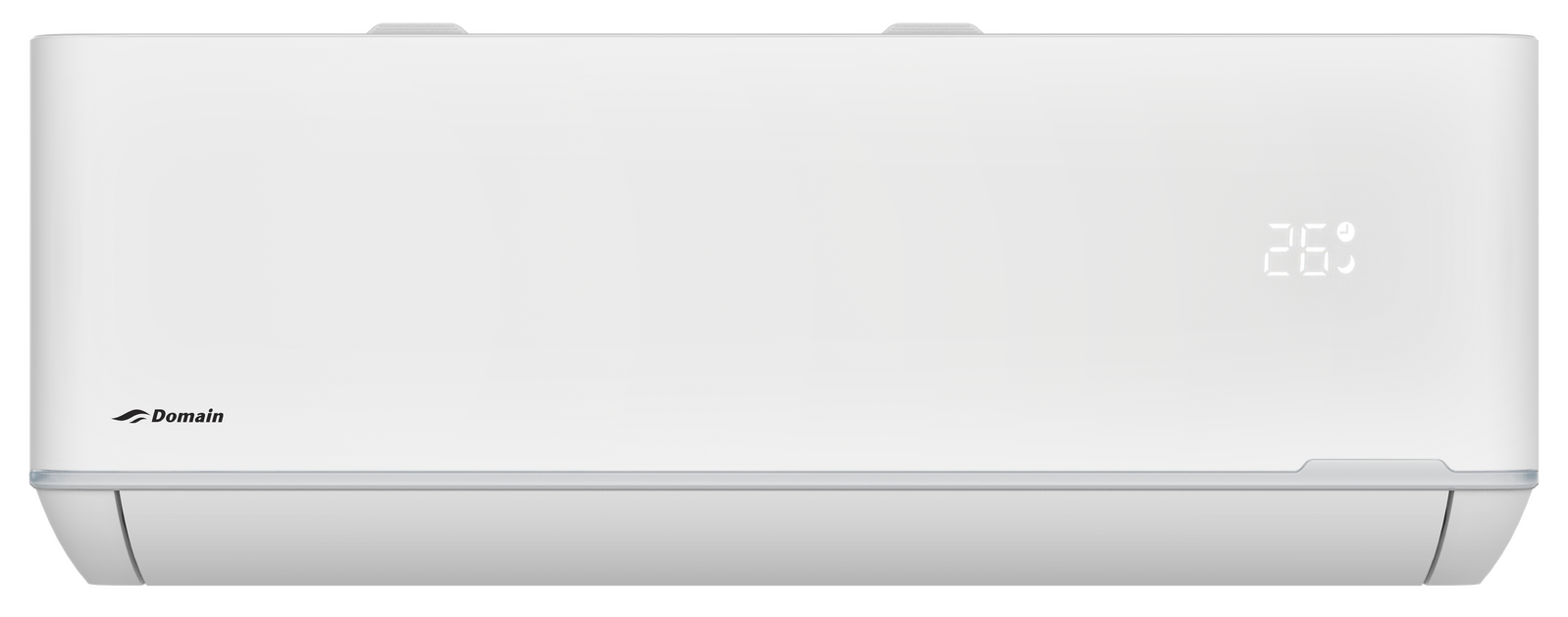

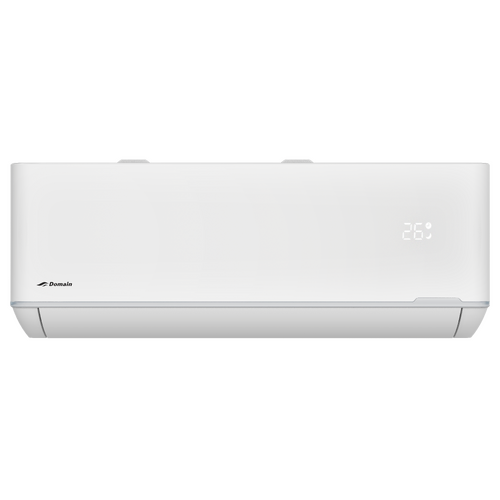

5.3kw Inverter Reverse Cycle Split System - ISR53Q
WiFi Control Module Compatible
Notify me when back in stock
MODEL
ISR53Q - (WiFi Control Module Compatible)
DESCRIPTION
Stay Comfortable All Year Round with Domain Inverter Air Conditioning
Domains 5.3kw Inverter Air Conditioning unit offers precise comfort with Inverter Technology, intelligently adjusting compressor speed to precisely maintain your desired temperature. This eliminates uncomfortable temperature swings and reduces energy consumption compared to traditional on/off systems.
Our premium split system air conditioners are Wi-Fi Control compatible and also offer a variety of functions for year-round comfort, including: Heating, Cooling, Fan, Adjustable Fan Speeds and Dehumidification Mode (perfect for humid summers).
Not only incredibly efficient, our Domain Inverter Air Conditioners are also environmentally friendly. They use premium R32 refrigerant, minimising their environmental impact. R32 has a low Global Warming Potential compared to other refrigerants and delivers superior energy efficiency for lower running costs.
Our Domain Split System Air Conditioners are also built to last, with high-quality rotary compressors at the heart of every unit, ensuring reliable performance and comfort in your home for years to come.
Intelligent Inverter Control - Our premium inverters automatically vary their output based on changes in room temperature to provide a consistent desired temperature. This ability to vary the compressor speed allows Domain's intelligent inverter-controlled systems to be extremely energy efficient.
3D Air Delivery Technology - This feature allows equal, fast and wide-range cooling/heating and distributes comfort to every corner of the room. It is achieved by engaging the units advanced multi-directional louvres to maximize airflow around the entire living space for true 3D heating and cooling.
Comfortable & Constant - Providing more power and faster cooling than conventional units, even during extremely hot outdoor temperatures. You'll also enjoy stable heating, even when outside temperatures are below freezing. Additionally, when desired temperature is reached, the unit will continue to hold a stable temperature automatically, saving you money.
WARRANTY
3 Years Parts and Labour Warranty
|
Model
|
ISR-53Q
|
||
|
Cooling
|
Capacity
|
W
|
5300
|
|
Capacity Rate Minimum
|
W
|
1000 | |
|
Capacity Rate Maximum
|
W
|
5600 | |
|
AEER
|
W/W
|
4.0407
|
|
|
Heating
|
Capacity
|
W
|
5300 |
|
Capacity Rate Minimum
|
W
|
1000 | |
|
Capacity Rate Maximum
|
W
|
5800
|
|
|
ACOP
|
W/W
|
4.3031
|
|
|
Power Data
|
Power Supply
|
Ph-V-Hz
|
220-240V ~50Hz
|
|
Power Supply Connection
|
-
|
Outdoor Unit
|
|
|
Voltage Range
|
V |
165 ~ 265
|
|
|
Running Current Cooling
|
A |
5.7 (1.2 ~ 12.0)
|
|
|
Running Current Heating
|
A | 5.8 (1.3 ~ 12.0) | |
|
Rated Input Cooling
|
W
|
1300 (230 ~ 2150) | |
|
Rated Input Heating
|
W
|
1220 (250 ~ 2150) | |
|
Maximum Current Cooling
|
A
|
12.0 | |
|
Maximum Current Heating
|
A | 12.0 | |
|
Maximum Input Cooling
|
W
|
2150 | |
|
Maximum Input Heating
|
W
|
2150
|
|
|
Fan System
|
Air Circulation Cooling
|
m3/h
|
1200 |
|
Air Circulation Heating
|
m3/h
|
1200 | |
|
Indoor Fan Speeds Cooling (H/M/L)
|
rpm
|
1220 / 990 / 750
|
|
|
Indoor Fan Speeds Heating (H/M/L)
|
rpm
|
1130 / 970 / 800
|
|
|
Indoor Fan Speeds Dry
|
rpm
|
850 | |
|
Indoor Fan Speeds Sleep
|
rpm
|
750
|
|
|
Indoor Fan Motor Output
|
W
|
45 | |
|
Outdoor Fan Speed
|
rpm
|
910 | |
|
Outdoor Fan Motor Output
|
W
|
85 | |
|
Moisture Removal
|
L/H
|
1.8
|
|
|
Refrigerant System
|
Refrigerant Type
|
-
|
R32
|
|
Precharge Amount
|
g
|
1140 | |
|
Compressor Type
|
-
|
Rotary
|
|
|
Connections
|
Connecting Pipe - Gas
|
Inch
|
1/2 |
|
Connecting Pipe - Liquid
|
Inch
|
1/4
|
|
|
Maximum Pipe Length
|
Metres
|
20 | |
|
Maximum Height Difference
|
Metres
|
15 | |
|
Connecting Wiring
|
mm x cores
|
0.75 x 4
|
|
|
Dimensions / Weights
|
Indoor Unit (WxHxD)
|
mm
|
1097 x 332 x 222
|
|
Outdoor Unit (WxHxD)
|
mm
|
927 x 699 x 380
|
|
|
Indoor Unit Weight
|
kg
|
13 | |
|
Outdoor Unit Weight
|
kg
|
37 | |
|
Indoor Unit Packaging (WxHxD)
|
mm
|
1165 x 295 x 405
|
|
|
Outdoor Unit Packaging (WxHxD)
|
mm
|
949 x 732 x 392
|
|
|
Indoor Unit Gross Weight
|
kg
|
16
|
|
|
Outdoor Unit Gross Weight
|
kg
|
40 | |
|
Stars
|
Cooling (Hot&Humid / Mixed / Cold)
|
stars
|
4.5 / 4.0 / 4.0
|
|
Heating (Hot&Humid / Mixed / Cold)
|
stars
|
3.5 / 3.0 / 2.5
|
|
|
Noise Level
|
Indoor (High)
|
db (A)
|
60 |
|
Outdoor (High)
|
db (A)
|
65 | |
|
Outdoor Operating Temperature Range
|
°C | ||
|
-15 ~ 50
|
|||
|
Indoor Operating Temperature Range
|
°C |
16 ~ 31
|
|
Technical Specification Sheet
(ISR53Q)
